Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor

Product Categories
Shenzhen ZhaoWei Machinery & Electronics Co. Ltd.
Contact Now

Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor

  • 1
  • 2

Brand Name : ZHAOWEI

Model Number : ZWBMD008008W

Certification : ROHS/ISO9001/ISO14001/SGS/TS16949

Place of Origin : China

MOQ : 500pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 5000 pcs per day

Delivery Time : 15 working days after payment

Packaging Details : packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing

Type : Linear motor

voltage : 12V-24VDC

Stroke : customization

Noise : lower than 50dB(under stable circumstances)

Time : 0.2-1.5S

Working temperature : -20°C-+ 85°C

Speed : customization

trip : customization

Contact Now

8mm 3-12VDC Low Power Hieh Toqeur Thread Linear Actuator Geared Motor

Planetary Gearheads Specs

Number of Stages 1 2 3 4
Redeuction Ratio 4 16 64 256
Max Feed Velocity (mm/s) 15 6.3 1.6 0.4
Max Force Continuous (N) 2.8 5.8 8.8 13.8
Max Force Intermittent (N) 8 18 27 27
Direction of Rotation, drive to output = = = =
Max Efficiency 27% 24% 22% 19%
Average Backlash No Load 1.8° 2° 2° 2.5°
Gearhead Length (mm) 7 9.6 12.2 14.8
Max Transmittable Power (Continuous) (W) 0.1 0.038 0.014 0.005
Max Transmittable Power (Intermittent) (W) 0.458 0.188 0.07 0.018

Screw Drive Specs

Spindle Length (mm) 50.3 50.3 50.3 50.3
Radial Play Max 0.08mm, 5mm from flange Max 0.08mm, 5mm from flange Max 0.08mm, 5mm from flange Max 0.08mm, 5mm from flange
Max Radial Load (N) 5N, 5mm from flange 5N, 5mm from flange 5N, 5mm from flange 5N, 5mm from flange
Max Radial Load (dynamic)(N) 4N 4N 11N 11N
Max Force for Press Fit (N) 25N 25N 25N 25N
Max Continuous Input Speed 2083rpm 2083rpm 2083rpm 2083rpm
Max Intermittent Input Speed 8333rpm 8333rpm 8333rpm 8333rpm
Temperature Range -15……+80℃ -15……+80℃ -15……+80℃ -15……+80℃

Feature:

  1. This screw drive consists of motor, gearbox, lead screw. Control system transmits instructions to mechanical system, transforming the rotary motion of motor into linear motion of the lead screw. Thus, it achieves pushing, pulling or lifting the load.
  2. All the specifications of the screw drive can be customized according to your needs.
  3. Multi-application. The 8MM screw drive can be used in various intelligent linear drive terminals, such as industrial/agricultural automation, patient lifter, automatic wheel chair, sit&stand lifting desk, traffic facilities etc.

We provide you with application solutions, please let us know your needs and ideas

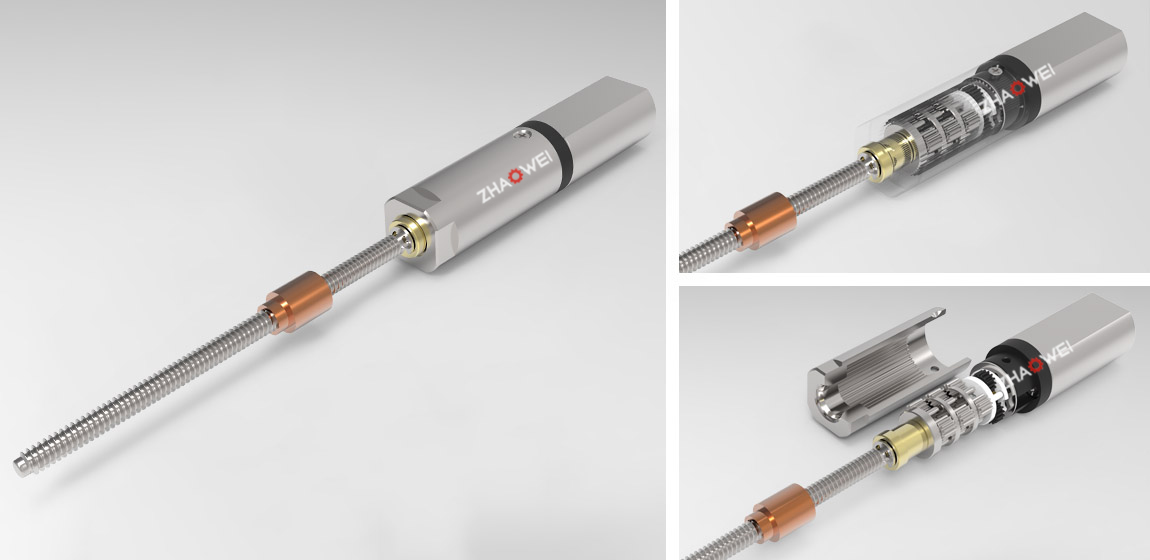

product details show:
Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor

Application:

Household application electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
Office automation equipment OA equipment, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
Automotive products conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
Toys and models radio control model, automatic cruise control, ride-on toy and etc.
Medical Application blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
Industrials display, flow control valves and etc.
Electric power tools electric drill, screwdriver and etc.
Precision instruments monitor, optics instruments,automatic vending machine and etc.
cosmetic tool eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.
Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;
batch order leading time according to the actual situation.

Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.
Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor
1) Competitive Advantages

  • 17+year experience in manufacturing motor gearbox
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products

  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.

Production&Equipment

Thread Linear 8mm 3-12VDC 2083rpm Actuator Geared Motor

FAQ

1. Can you make the gearbox with custom specifications?
YES. We have design and development team, also a great term of engineers, each of them have many work years experience.
2.Do you provide the samples?
YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
3.What is your MOQ?
Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.
4. Do you have the item in stock?
I am sorry we donot have the item in stock, All products are made with orders.
5. Do you provide technology support?
YES. Our company have design and development team, we can provide technology support if you need.
6.How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
7.How to pay the money?
We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.
8. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
9. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
10. How do contact us ?

Please send an inquiry .
